Using Theremino Slot Viewer I made experimenting with Emotion Meter, and I made some small but important changes to the program, that is still a beta version.
I sent a copy to Livio, Why need of his experience and skills to make some tweaks.
Just plug and play (of course consistent with its commitments) will post the updated version.
As already written, as soon as I have time I will do further tests, using the sensors for the can.
Maurizio, Thanks for the excellent improvements.
Fix the two parts that you left to finish and publish it today.
I managed to get it to work, I had done a bit of confusion between slots and pin it all OK apart from l’ swing is not much. Do you mean that you publish your new model? Fantastic. I wanted to ask you something, the Clipboard is talk of using two cans of tomatoes as electrodes but can also be used two small plates or form must be right tin snips? I wish I could depart a little from the original model, What do you say?
In half an hour we publish version 2.0
Try it and if the gain is not enough yet I'll get up tomorrow.
The cans are cylindrical to make good contact, with the mattress surface of skin.
Years ago I made many tests with different types of electrodes, and the best were found to be cans of flux for electronics, tinned iron externally, with a diameter of about 4,5 cm, which unfortunately are no longer available anywhere.
For reasons unknown to me, but I'm guessing they may have to do with some type of electrolyte phenomenon triggered by sweat, the material constituting the electrodes greatly affects the quality of the measurement.
My advice is to start with the electrodes as far as possible the same as originals, and only after, When you see the instrument work properly, experimenting with other methods.
From personal experience, do not recommend the use of stainless steel, copper and brass.
The best electrodes available today (by searching the internet) are made of plastic coated in silver, but they are expensive. I have not tested.
I think you could build in house efficient electrodes using plastic pipes for plumbing covered with aluminum foil, I plan whenever possible to try, but my free time has very little.
Afterwards I intend to write a guide to attach to the program, where will exhibit my personal experiences.
The skin inside of the hands has some peculiarities that make it different from that of other parts of the body, and the ability to change, Although unconsciously, the strength with which you wield the electrodes, definitely join the extent.
I have to say, though, in my experiments I noted several times that the resistance variation went far beyond the possibility offered by the exchange of force.
Let me explain:
One way to make a first calibration of the instrument is to ask the subject to hold the electrodes without tightening them, allow approximately half a minute talking to him because the electrodes to become warm, and then ask him to tighten. When li tightens, You should adjust the gain to get the second hand to full scale right, but without going over.
Then, When he returns to challenging them normally, If you need to return to zero.
I happened several times, placing the subject questions that encouraged, the pointer end up banging very loudly at full scale.
This huge variation could not be produced solely by increasing strength while you are challenging.
Excuse me if I break yet but you could add a button to register so that we can cover the work done with the E-meter?
Record video?
You would too. The thereminico principle is to use simple applications that work, so to record the video, you'll need to use an application.
OK thanks Monday, taking the job.
Published,
https://www.theremino.com/downloads/biometry#emotionmeter
Try it and let us know how you work.
Hello, site managers and reviewers
And’ the first time I write on these pages, and I have to congratulate your work, for me that I'm not a professional in the field gives me the opportunity to try out a new world.
I have a question to ask.
I would bring my application , by HAL ( master via USB) at NetHal (with netmodule), the problem is that in NetHal the pins are not configurable as “Exit for Stepper Motors”.
And’ a limitation of the hardware, or is it a possible implementation, Maybe you expected in the future ?
Thank you
And’ a limitation of the hardware, I'm sorry.
What type of application it is?
Application: Control of an internal combustion engine used for irrigation, located in remote area.
Application being completed. I monitor the engine through sensors (temperature, RPM, oil pressure, plant watering system, ECT) .
The stepper will use to control the acceleration.
The application should take action in case of malfunction by shutting down the engine, or off.
Connect remotely to control PC (team viewer) to view the various parameters, or verifying how the application can send periodic messages with data (Maybe with Skype).
The idea of using the netModule was to avoid leaving your PC on the Middle, but it is far more sheltered area.
Are not practical programming, the only English-I know discreetly is Vba, and for now I write so, then I know a tiny bit of VB6, so maybe then I'll see if I take him to VBexpress.
The idea was to use the Raspy, but as far as to say that Python is simple don't have time to learn a new language, and the raspy remained in the drawer.
Thanks for your support.
Instead of stepper you could use a servant.
There are also very powerful, with a couple who can't stop them with fingers. Dozens of times a pair of stepper. So there is no need to demoltiplicarli.
Precise angular position servo also guarantee a and not risk losing steps as it might be to stepper.
Are also easier to feed and do everything alone no drivers required.
Finally are cheap and the Net Module ne pilots up to eight.
Thanks for the suggestion,
I get a good servant and do the tests.
I can prove it only Monday, but in the meantime I thank you and I congratulate you for the simple instructions and targeted. For the buttons and the external potentiometer are very interested and will definitely try to implement your advice. Thanks again.
There are long, narrow cans of pet food (height 88 mm and diameter 52 mm).
Are made of Tin (tinned iron), so do not rust and are very similar to the original ones. I can't remember the brand because I deleted the labels, But if you go to a store to find cat foods.
Thanks tomorrow I go to retrieve the cans. But for connecting the I need to weld the wire which then attacks to pin or are fine also the crocodile clips? If I make the cans with the foil I know it can be welded, I already tried. But with the other , What would be best?
If you find cans of cat food Tin (tinned iron) meld easily.
We published four lines that explain how to use speech.
This way you can test yourself, without moving your hands to reset and change the gain.
https://www.theremino.com/downloads/biometry#emotionmeter
Just read thank you again is a great idea because at least until I have some practice will be difficult to find someone interested in these “experiments” or maybe not ; We'll see. For me if it works it has a great potential.
Hi BR1.
My advice is to start as an operator, with electrodes connected to someone else.
Obviously, You can do the first tests on you, but it is not easy to induce emotional States needed, It is easier to induce them into someone else.
Try to do tests on two or three different subjects, because with some people it is more difficult.
I'll try to find someone in the meantime I wanted to ask whether it is better Res16 or 8 as I did with the 16 as instructed but I ssembrava not very sensitive with 8 It was better. I also tried the cans for cats and are happy with are very sensitive, but the food I have to eat ah ah. Joke work seriously. Instead Maurice if you post your experiences would be important, as soon as I have a bit of material to share him too. Thank you
Hi BR1.
A document with some information on the use of the instrument is in progress, We'll publish it as soon as possible.
Regarding pin settings, I confess that I haven't found time to do some tests with this new version of the program, It will take some.
Since you're already doing these tests, Please bring everything you see and learn about the operation.
Meanwhile, We are collecting ideas for improvements.
Let us know your impressions, will help us.
Careful to eat cat food, It is said that each brand contains an additive that makes the cat faithful only to that brand, and then refusing the food competition :)
Hi I have lost a bit of time with cans because I already made a review, In addition to remove the upstairsand the below I did remove a strip of about one centimeter in length and a half or two to minimize the problem of pressure with your hands but it is a’ idea so throwaway. Definitely poor in other ways yet. I tried to install the voice but I have problems To l’ E-meter the best configuration so far is this Gain 100 Output-1 Setzero-1 Gain-1 is not a repeat, There are two Gain. The Pin is set so Res-8 Val Max 100 Val Min 0 Response speed 30 Into the details of the Pin the vertical scale is on 0,1. With these parameters on rye was between 4 and the 7. Then I downloaded Signalscope to record the signal from the Pin but I have yet to figure out how it works. The first tests I had some good results but I have to organize both the Master securing somewhere both sensors. That's all for now. Meanwhile, I continue with the evidence and try to engage someone because one side alone is extremely difficult to actually induce emotional States in General and the’ other check the signal. However l’ E-meter is done right, Thanks again.
Hi BR1.
Livius is working on the new version, and I'll do some tests.
Do you anticipate that you can use the tool with one hand.
Put duct tape on the bottom edge of a can, then accoppiale down against the bottom, joining them with electrical tape, so they are isolated from each other but attached to the bottom.
Impugnale with one hand, holding the joint tape inside the Palm.
Because of the lower contact surface, you have to double the value of gain.
To link the cans to the master, We are using a 22 Kohm between 3, 3V and pin 1, cans from pin 1 and GND. The pin is set in HAL as ADC16.
Like this, I tried successfully to hold between the fingers the crocodiles that link to cans, and despite the minimal surface, You can still reset the unit, but we don't know how sensitive.
Soon we will publish a new version, with nice improvements.
You are great. I'll try to do some testing but I did not understand much, and because of me of course, see what I can do in the meantime while I wait . Thank you
Soon there will be a new application.
Begins to stabilize yourself with the following adjustments:
– 22k resistor between SIGNAL and the +3.3 volts
– Capacitor 1 UF between SIGNAL and GND
– Adc16 (the 16 are always better than the 8 or at least equal)
– MaxValue = 1000
– MinValue = 0
– Response rate = 30 (or even 10 to stabilize best)
– Gain a pleasure (to be changed depending on the occasion)
– Output 2 / Setzero -1 / Gain -1 (If you don't use voice commands)
– Output 2 / Setzero 3 / Gain 4 (If you are using voice commands)
Input / Output / SetZero and Gain are slots which are used to communicate with other applications.
The Slot “Output” = 2 Send on Slot 2 the position of the second hand (and I would say for now won't use)
The Slots “SetZero” and “Gain” you have to set them to 3 and 4 If you want to operate the voice commands.
But in this case you won't be able to change the Gain from application.
So if you don't use voice commands you should set the communication Slot -1, that means “Not used”.
Thanks I try the components and I start to work.
Regarding the gain, I suggest you start by setting it to 10 If you use the cans with two hands, and in 20 with one hand.
Then does the proof by tightening the cans to see how much it deviates the needle, and adjust the gain for a detour to the right from the SET position until about half the industry FALL.
Parts from these values, and then make them you need according to the work you do.
There are two boxes gain, a gain setting, the other in section InOut Slots.
In this last section imposed a number of slots for communication with other applications of Theremino.
Alright thanks. There is a lot of information, I will take a while to try everything. However slowly.
It's actually very simple, but at first having to study many things will stay a while’ confused.
You'll see that in a few hours of testing everything becomes clear.
Let us know how you are and what problems dating, We need to improve the next version.
Hello, Sorry for the delay. I did a bit of testing with the new version, I soldered the capacitor and resistor. The signal is stable and very sensitive, If I move an arm or leg without shifting the cans, the second hand moves and is very sensitive to pressure. Obviously I have to do further testing because those are the things I'm interested in check. The cans are attached and use just one hand but seems to go OK too. But out of curiosity I seem to have noticed that the signal is only stable all’ in a certain range; I'm wrong? If I explained how do I send you a video if you are interested in. A’ else: both l’ And- meter original is the polygraph control skin resistance, l’ ADC Pin setting controls the tension: that's okay? Thanks for your patience.
Hi BR1.
As I have already written, I saw (but I haven't done extensive testing) You can use this system even with smaller and less sensitive to pressure, for example, rings on fingers, as you do with the polygraph.
In fact, the real difference between an e-meter and a polygraph lies in the type of electrode used.
All these systems are sensitive to pressure, and I think the choice of the cans is intended precisely to exploit the inevitable and imperceptible changes in muscle tone.
With the scheme suggested, the voltage on the electrodes that laws with the master is proportional to the resistance of the body connected.
The resistor from 22k and skin resistance form a voltage divider. The tension that you get at the midpoint of the voltage divider is measured by Adc. Then with a mathematical formula the program calculates the resistance value unknown. So what we measure is exactly the value of skin resistance.
The measuring accuracy is greater than what you can get with analog circuits and you do not even need to adjust calibration trimmer.
In a second step the software starting from the skin resistance calculates the value of TA (Tone Arm) exactly like the original theta-meter. Only that the theta-meter to calculate they need someone to turn the potentiometer tone-arm up to balance the bridge, While the software calculates the TA instantly without a human to help him.
The formula for calculating the skin resistance starting from the value from 0 to 1000 produced by the Master is:
RES = -22000 * the / (the – 1000)
And the formula for calculating the TA from the skin resistance is:
Ta = Res / (RES + 21250.0F) * 5.559F + 0.941F
Hello, Thanks for the replies. Maurizio , It's one of my biggest doubts that whether it is more profitable to control the change in pressure or skin resistance. I think it will take quite a lot of evidence to clarify this doubt; If you can clarify!. Because I got to see an E-meter and in a’ occasion l’ operator of the shoulders he divined that arm lifted what he held the cans and nell’ other myself I had to listen to a list of names of fruit and eventually l’ operator told me the result that I liked most. In fact it was the fruit of which I remember more vividly than any other fruit. These two things make me think that l’ And- meter measures only stress. I insist that if I can use your software as fully as possible applications are many and in many fields. A short Lighthouse already a first test with a’ other interested person, I hope to have some cool stuff to share. Livio your explanations are very technical and unfortunately in this are very limited but the equations that you wrote me I care too much. If you help me understand them I'd appreciate it. Meanwhile, start by asking if the voltage that is sent by the master to cans is 3,3 V I seem to have read that and if you like I plug it in’ equation? Of course you are allowed to become unresponsive, and you'd understand, Anyway thank you steszo
The voltage goes from 0 to 3.3 volts and the Master transforms this voltage into a value ranging from 0 to 1000.
This value from 0 to 1000 is the input of the first equation.
Anyway don't worry formulas, you don't need, I wrote them just to give an idea of how it is done the calculation.
The software does all the calculations needed and gives you strength and TA values directly.
—-
PS: I can't find your email, write to me at engineering@theremino.com so I can answer you and send you a trial version of EmotionMeter
Hi BR1.
Also I have seen an emeter in action, even if the operator did demonstrations of the kind that you say.
To be honest I wonder a little’ they can do, but I think depends on the workout.
You say you've already seen it in action with the use of the lists, This is a good way to start.
Obviously, You'll gain deviations larger needle ready lists related to emotions stronger than those generated from fruits…
The next step is classic insist around those topics that they deflect the needle significantly, but at this point it becomes an exploration of the personal area of the subject, and approaching a little’ dangerously to psychotherapy..
Livio sorry , you won't believe this but I have an email. I didn't think you had already a new version of’ E-meter, Obviously I'd like to try it but if you do not want to publish it I get it. Thank goodness that the equations makes the software, I was already in crisis.
Maurizio where did you see in action the E-meter ??? The lists are just fine using them even with the polygraph. A classic is to choose a number from one to ten then the operator lists them and l’ respondent always responds to no. Obviously, there should be a power surge upon chosen number. With regard to psychotherapy I know many psychologists use something akin to the lie detector and I agree, but I'm not having the skills I was interested in more’ practical aspect of this tool.
It doesn't matter that you don't have the email, within a few days we will publish the new version.
The next post go ahead without using “reply”, otherwise it is too tight.
Great I will continue with this. Thank you
It took us a little’ more than a few days, I hope you have had the patience to wait, but it was worth it.
Now there is everything & more.
https://www.theremino.com/downloads/biometry#emotionmeter
Good morning everyone,
sorry in advance for question. Until a few days ago, first to change pc, I had a theremino cnc version with menus in Italian. Today, I can't find it. By downloading from the website the program has in meni in English. Someone can help me?
Thank you
Theremino CNC has always had the menus only in English. This is an application for specialists and the menus are easy to understand.
If you go the HELP menu you can open files “Program HELP” and “G and M codes” also in Italian and this can help you understand the commands on the menus.
It could also be that you remember the menus of HAL, which can be translated into Italian with the menu language.
If I remember correctly, I had copied a file (or more files) in the Theremino folder, and I had the menu in Italian. Only the buttons at the bottom left (Start, stop, ECT….) IN ENGLISH.
Theremino CNC has the language files and has not yet even in earlier versions.
You probably remember something on another application thereminica or about HAL.
Hello, I would need to operate a moped to over 3000 RPM (trying to vary the speed)and from your link I found this that arrives at 10.000 RPM https://www.pololu.com/product/2269 . Can you advise me to engines since I don't have practice with what kind of card to use in order to fly and to interface with theremino?
Thank you
The engine you have indicated are unsuitable for various reasons:
– And’ made to connect it to a “gearbox” (gear speed reducer)
– It also has an encoder (that would not be very good at programming in DotNet)
– It looks like a brush motor then has a limited lifespan compared to brushless motors.
– The unnecessary features of this engine make it quite expensive.
I'll recommend buying a brushless motor (brushless), and use a form ESC to fly it (You can find both at any seller of parts for model airplanes).
The motors driven either by an ESC can be directly interconnected (and adjustable speed), with an output of our Master module configured as Servant.
There are also models from 20000 laps and over but you have to take into account that the brushless run in strictly only.
To have best advice you should better describe what you want to achieve, for example why you need a motor for over 3000 RPM, and what are the other features you need.
Thanks Livio! your answer I was greatly clarified the ideas now .
I just have to find them, for turning over 3000 I'm okay with that then I can't say what I take for crazy….need for experiments with magnetic fields, Thanks again!
In this video you can see a small brushless motor connected to a small ESC, that then is adjusted speed from an output configured as “Servo_16”.
https://www.youtube.com/watch?v=I54cN8ekzmo
In the video there are also a form CapSensor and a Servo module but you're just the only Master module.
If you don't need big power buys a small brushless, cost less, they don't need an ESCAPE from many amperes nor a PSU exaggerated.
To choose a brushless motor you have to watch her KV (maximum speed than the volts of power) and then decide the supply voltage and also a suitable ESC (that keep the voltage of the power supply and the motor current you choose.
I remind you that the brushless run in one direction only and that at low speeds don't work well (below a certain minimum speed stop).
If you need to rotate in two directions and going at very slow speeds, then you should use all other systems (Motor continues, H-bridge controller and handling with output configured as Pwm_16. Possibly ask Warren thereminostore to send you a bi-directional speed controller).
Hello Livio. I saw l’ And- meter 3 about three weeks ago because I was busy. You did an amazing job. Really there is a lot of material explained very well. With the previous version had already done several tests with good results, but with this version it is a definite’ else. Also recorded is the’ trend’ ago that rumors is extremely useful and also other options need a lot. I'm making lists to make new evidence and managed to involve two other people. To tell you the truth I'd be already thinking of using together the Mindwave Bridge but I think gia l’ E-meter me pretty busy. Thanks for the great job. If you have other tips are welcome, Thanks again.
Hi BR1.
Happy to hear from you!
I am very interested to know the results of your tests, keep us updated.
The idea of using the Mindwave Bridge together with the Emotion Meter is really tantalizing, but also very challenging, because the data obtainable from Mindwave are many, and unfortunately not easy to interpret.
Could you unlock, at the same time Emotion meter, Slot Viewer, to view some selected data of Mindwave. The more I see,and harder to interpret, because at a glance you can't follow many.
Or, You may open a second session of Emotion Meter, and use all its functions to analyze only one signal selected from the Mindwave. The advantage here is that you can see the derivative of the signal, and decide how to condition it.
Let's hear what Livy.
P.S.
I agree with you that the sooner the better understand the operation of the new Emotion Meter, and only then expand the search to the Mindwave.
Hello
Maurizio
In the future you could do everything, also use Theremino Automation to read slots, both Emotion Meter by Mindwave. And, always in Automation, write four lines to produce more results or actions to the future of certain conditions. But the Emotion Meter as it is now is already quite complete, do know that deserve.
Don't worry I have already started to involve others. It is true that so is already complete and very interesting. I will try to explore its full potential that I think are many and responding to Maurice I assure you that if I have interesting information I will not fail to bring to your. Indeed I could already start with the test I did with the version 2, but instead of cans I cut two strips of Tin of about 1 and a half centimeter wide by 6 in length. Supported the index finger in a and the middle in the other, the same hand, I had the same results of cans, just that the pressure reading was almost undone, but the rest as the deep breath, the movement of the upper arm or legs or moving of the head were all “beds” and of course remembering times of particular stress, as of when I did my first roller coaster ride, or when I took some punch in a’ Tay boxing workout, E- meter, with a certain amazement, recorded a change in resistance. Of course is just the beginning, sounds good though. Obviously seen that the original has the cans use them too, but definitely not only omit the possibility of “customize it”, If I pass the word. Meanwhile, thank you and greet.
If you want to publish your research would be best done on the form Theremino, you find on the site Elettroamici. On that forum start discussions (topics), publish images, and also write whole articles.
https://www.elettroamici.org/community/menu-forum-microcontrollori
Begins to register and start a topic on the forum. Afterwards, If you'll need it, Amilcare administrator will explain how to edit the articles and insert images and files.
– ATTENTION – FOR ALL READERS –
The forum theremino on the website Elettroamici is the place to discuss the technical details and to publish their research. In that forum you can start a new topic for each topic. So the discussions remain separated, and not all mixed into one page as it happens here. In addition the site editor Elettroamici is better, allows you to write in bold, in color, with images, links, etc…
Hi BR1.
I'm glad to know that you have some interesting readings with the emotion meter.
The fact that you can disengage from cans, and the side effect of reading the hands hold, I find it great, is another big improvement over the original instrument.
I agree with the Board of Livius to continue dealing with this search on Elettroamici.
The program is complete and I think it won't be long before it needs uklteriori adjustment, now it's time to use it.
Let us know when you signed, and we begin a specific discussion in the forum.
Good research
Maurizio
Hi yesterday I looked at the site but to register it takes the mail and I don't have. From ” profane” wonder if it's just mandatory, If the files here’ . Let me know thanks.
I ask Amilcare (the site administrator) and I'll let you know.
Thanks and sorry for the trouble.
I asked and Amilcare explained. Since at that site you can also write articles you need to identify yourself in any way. So when you reconnect the day after you can find all your stuff (articles under construction, images etc..).
There are only two ways to identify, or use your identity tied to a social, Facebook, Twitter etc… Or use an e-mail address.
If you don't want to give out your address or if you haven't, You can easily make one on purpose. Go on GoogleMails or on free and in five minutes you the address.
For now maybe write an article, but you'd do well to open a discussion with a specific topic. Or it could start Maurizio. No matter who starts, will become the clearing house for ideas and experiments on the subject and we can all contribute.
Hello everyone. I need to monitor the state of charge of a battery that feeds the sensors in a system “Thereminico”. Is there somewhere a circuit that interface face between two of the master pin and the battery so that, with a small program in VB I would try to make, I can use the computer as a voltmeter / ammeter? I ask apologize in advance if I ask something obvious or something complicated. Thank you
Measuring a voltage (referring to the mass of the Master, then not isolated from it) It is quite easy. It will suffice two resistors that form the voltage divider (values around 10..100kohm). The divider must be calculated to lower the voltage to be measured in the range accepted by the Master inputs (or volts from up to 3.3 volts).
So if the voltage to be measured for example, was 5 volts, You would use a 15k resistor between SIGNAL and GND, and a resistor 10 k between SIGNAL and the voltage to be measured. In this way you can measure voltages between zero and 5.5 volts (leaving some’ by more than the margin 5 volts).
The Master will set the Pin as Adc16 and get numbers ranging from about zero (with zero voltage) about 1000 (with voltage 5.5 volts). In the software you simply multiply this number by 5.5 to obtain the voltage in millivolts. Then wanting, you divide this number by a thousand and obtain the voltage in volts.
The achievable accuracy without calibration will be around one per thousand, so five more or less millivolts. If this accuracy was not enough you could add a sum ratio (to calibrate the zero) and one multiplicative (to calibrate the five volts).
Here you will find more information on dividers for measuring a voltage (but losing leaves the part about the current and the differential sensor that are too complex for this case)
https://www.theremino.com/hardware/inputs/sensors#meter
———————–
Measure the current is more difficult, it takes a special circuit, find it here:
https://www.theremino.com/hardware/inputs/sensors#current
And you can buy it on eBay and various Chinese sites, for example here:
https://www.store-ino.com/product-category/sensors
Ok. Thank you very much
Salve, is already a bit of time that will follow and in part the compliments for the beautiful work you are doing, I have a question to ask yourself about the functioning of’ CNC application. I have built, after various tests a CNC, a laser do-it-yourself than a set of parts of a scanner and a printer and the use I make is just fine. The electronic part consists of a Master DIL v5, una CNC shield 3.0 and a Chinese laser module from about 2 watts with its controller. However all this hodgepodge of stuff works, I was able to drive the laser shutdowns using pin on / off of the LM2576 which mounts the laser controller and control the power with the always of the same analog input. All this seemed to work, ONE DAY few ago I upgraded both the CNC application is the HALL and SlotViewer to the latest versions and there's something not quite right, or by SlotViewer I can do the on / off and adjust the laser power, but when I try to actually run a file from CNC gcode the M03 and M05 commands do not seem to work anymore (They should turn on and turn off the laser if I'm not mistaken ), just part of the code, even the simplest, how to print a few square, the laser is switched on immediately, and when he has to move remains lit., despite the commands M03 M05, finished the program turns off. The pin configuration is as follows, apart from engines, PIN 9 Dig_out slot 11( with min and max values reversed, since the 2576 with value 0 where è), PIN 10 Pwm_fast Slot 12. I'm a little confused because before this I did some tests and everything seemed okay. Now is not that it does not work, because sopperisco modifying the gcode using the S command to turn off and turn on the laser, but first with Feed & Speed locked switched seemed to work and I was returning convenient for the fact that inserivo, based on what they where doing, lo Speed (RPM) hand throughout the Code and M03 and M05 had operated for on / off.Se can you give me some explanation about would be grateful.
I greet you cordially.
Fabrizio
We checked, the M03 and M05 act on Slot 13 (not on 12 come Speed), and they are independent from the Speed value.
Even in older versions this was the behavior, and it corresponds to what is written in the instructions on page 43 (Appendix 9 – Slots input and output).
I copy here the part relating to the slot Speed, M03, M04 e M05
11 OUT - Spindle motor or laser (ON = 1000 / OFF = 0) - ON nelle fasi di lavoro12 OUT - Spindle motor speed(RPM da -99000 a +99000) - Specificato da "S"
13 OUT - Spindle CW (ON = 1000 / OFF = 0) - M03 M13(ON) M05(OFF)
14 OUT - Spindle CCW (ON = 1000 / OFF = 0) - M04 M14(ON) M05(OFF)
So to use M03 and M05 you will need to use the Slot 13.
If you just need, you mix the signals of slot 12 and 13, or with a hardware circuit.
Or you could mix them with Automation (to be in the same CNC folders and then launched with the utility startall). Then you'll need to connect the laser to a free slot, for example the 40, and enter the following program in Automation:
Speed 7If Slot(13) > 500
Slot 40 = Slot(12)
Else
Slot 40 = 0
EndIf
Hello everyone, Theremino I discovered recently and I found it simply unbelievable for what promises, although I have not read everything and men who tried less. For sure, if I have to do something, I need help because of my age, I am not as well versed in computer and digital technologies.
To start, I need a help from Livio.
Hello Livio,
I apologize in advance if you will ask some of my trivial.
I would like to frequency response measurements in the environment on my home hifi systems.
I downloaded from the website version Theremino 3 DAA, and I installed it on a desktop computer with Windows 10. It works, I have yet to understand a little’ all commands but still works, if I do the Sweep hear from the external speakers of the PC and register the curve with a simple microphone connected to the MIC input of the soundcard.
Now, thinking instead of measuring the response of one of the systems HIFI, I feel that I have to connect the output of the PC sound card to LINE system HIFI, and connect a microphone to the LINE decent sound card of the PC. Quite right?
The fact is however that the whole is quite cumbersome, so I thought installing the DAA on an Ultrabook that I own, great although a bit’ dated, the Toshiba Portege Z830-10F, which runs on Windows 7.
I pose some problems in advance. First, the laptop has no LINE input, solo MIC. By reading the data of the sound card, which it is a Realtek ALC269, leggo che “The ALC269 also supports stereo digital microphone channels (microphone array) with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technology simultaneously, significantly improving voice quality for PC VoIP applications.”
I conclude that the MIC input is anything but "clean", but heavily treated digitally then non-linear, etc etc.
I'd feel safer with an external sound card, but I would avoid the cards 1 EUR as those listed here, I expect that at that price the quality is low, and then the linearity safely go to hell, today is a little pump’ all, bass and treble to make an impression.
I would also avoid the various boards with nonsense like 7.1 channels and so on and so forth.
I thought of a Behringer UMC202HC. But I wonder:
How do you tell the DAA that the input signal must take them from the USB port and not the sound card?
Perhaps automatically it recognizes if there is anything connected to the USB port?
Once I note the frequency response in the room, how do I know the real values? In truth this is not very important, mostly what matters is the trend line. But in the future I might be interested in efficiency measures. We'll see.
The screen is a bit’ small, It is fixed or you can expand?
anyway congratulations, it is a bit’ I was looking for a similar software, and this seems appropriate.
Greetings,
Giovanni
Hello
1) The MIC input has the same quality as that LINE. If you look at the patterns, the difference is only a resistive divider with a different value of division.
2) Gli Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) you can disable all. “Registration / Microphone / Properties / Improvements / Disable all purposes”
3) For frequency response measurements stereo input does not need, and in any case not the DAA would use it.
4) Do not buy expensive cards. The quality of the frequency response of the coupons by three euro is exactly the same. There might be a little difference, but the background noise, for frequency response measurements, the sound card is always very low and does not count. Rather it takes a good microphone and, if the signals are low, must be pre-amplified and low noise.
5) All sound cards, expensive or not expensive, have the passband just limited to the above 20 kHz. Unable to measures up to 100 kHz, unless there are cards that do not know. And sure it does not tell you that in the characteristics because, even if the ADC card could get there, then the Windows driver limits the band with a digital filter to 22kHz. The DAA is up to 100 kHz but I never found a board that can do it. Do not get groped by those expensive, do not even over them because the signals 20 kHz are useless, and do only damage. It would take just to make measurements on amplifiers (without speakers and microphone).
5) The cards are not equalized for “make an impression”, I have to correct the small internal speakers of notebook, but usually just enter the jack which excludes the internal speakers disables the equalizer alone. If you do disable visit “Playback / Speakers / Improvements / Disable all purposes”.
6) If you connect a sound card to the USB Audio / Audio Playback and / Register panels appear two new speakers and microphone. And the DAA will present two new devices in the top lists.
7) The actual values are not knowable, less than calibrated reference with other equipment and then not move anything in the recording levels and listening.
8) The DAA panel is designed to look like an oscilloscope and can not be changed.
Livio, Thank you very much. When I get the measurement microphone will try everything, then if I need I do suffer.
Thank you so much for the availability
Greetings,
Giovanni
We are going to publish the version 4.0 the DAA with larger display.
The version 4.0 (which should be ready within a month) It contains many improvements, including:
– A precise adjustment of the tensions that allows measuring as a tester.
– Ability to make precise DC measurements, with a USB sound card that costs less than ten euro.
– It only takes four common resistors, non-precision, and a minor modification, that is done in two minutes, you get two input channels and two output, all coupled in continuous.
– You get an input impedance from 1 mega ohm (as oscilloscopes) and the ability to measure voltages up to +/-100 V (with respect to ground).
– With the addition of a probe 10:1 for high voltage (nine resistors 1 mega in series), you can measure voltages up to +/- 1000 V
Simply fantastic!
If they could save measurements at regular intervals of time, it would also be a powerful data logger (old preserved sound cards I would have several!).
It will be possible to read the voltage with any sound card or select models?
Measurements
—————————————————–
What do you mean as measures?
VPP, DB, Frequency, etc ?
And’ a good idea, thanks have thought.
You could always save (100 times per second) a series of values in the Slot. For example Slot1 = Vpp, Slot2 = dB, Slot3 = Hz, And so on.
Then other applications (for example Theremino Datalogger) They could read the values and write them to a file with any timing, or make any other use, including process values with Theremino Automation, filter them Thermino Filters, send them to a Master Output Pin, etc…
sound Cards
—————————————————–
Not all sound cards have the stereo input and not all are easily editable to get inputs and outputs in DC.
We advise the cards using the chip CM6206. They cost less than ten euro, They are easily found on eBay, and are incredibly stable. Only a few millivolts of drift from cold to hot.
eBay Link 1
eBay Link 2
eBay Link 3
Edit for inputs and outputs in DC
—————————————————
1) Replace two electrolytic barrel with two resistors 100 ohm resistor (those in the next horizontal images) (Note that if the electrolyte are surface mount you must warm up well the pitch before pulling, it will tear the pad and then it becomes difficult to recover the card)
2) Replace two SMD ceramic capacitors with two resistors 1 mega ohm (those vertically in the next images)

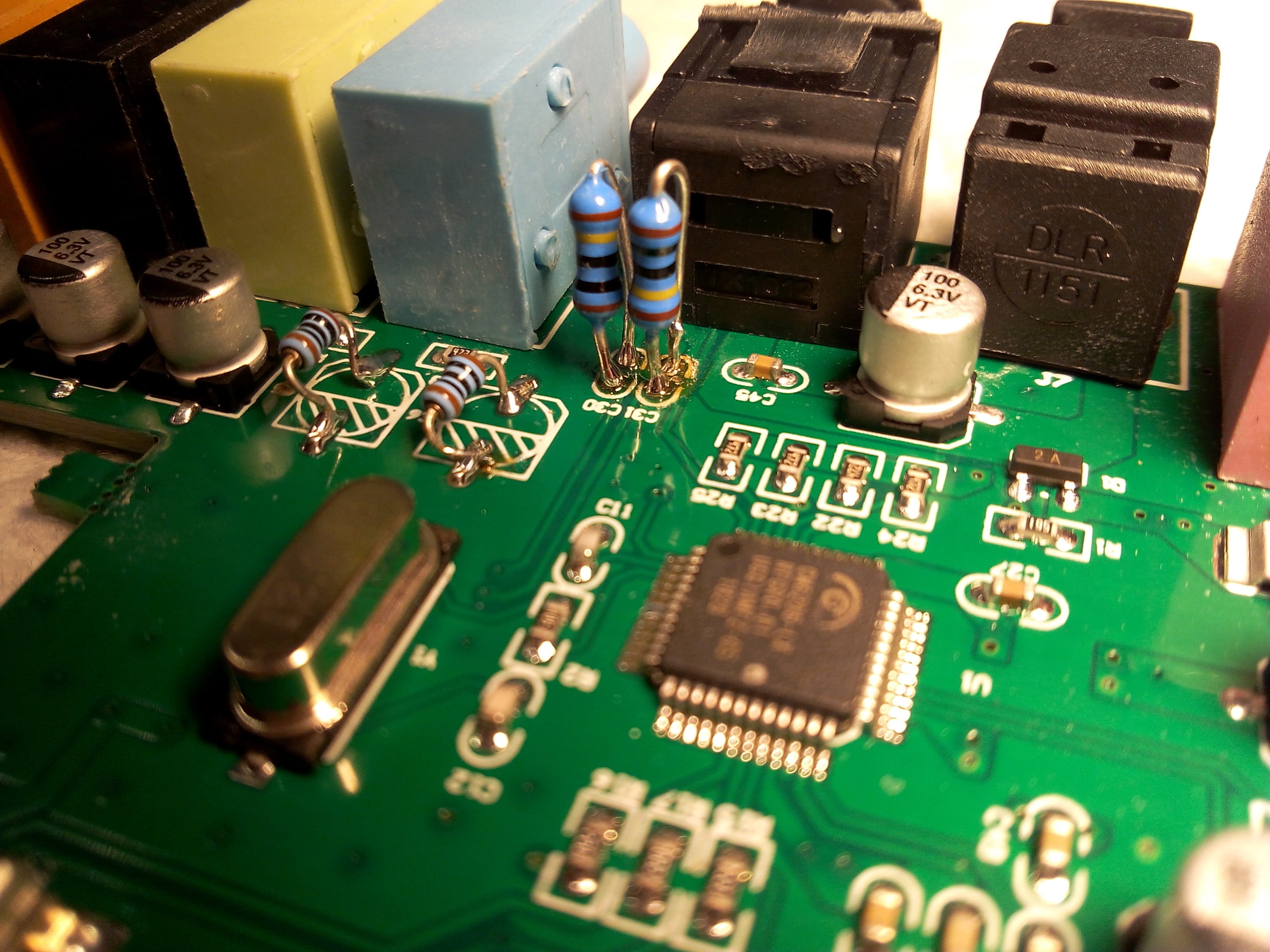

Image 1

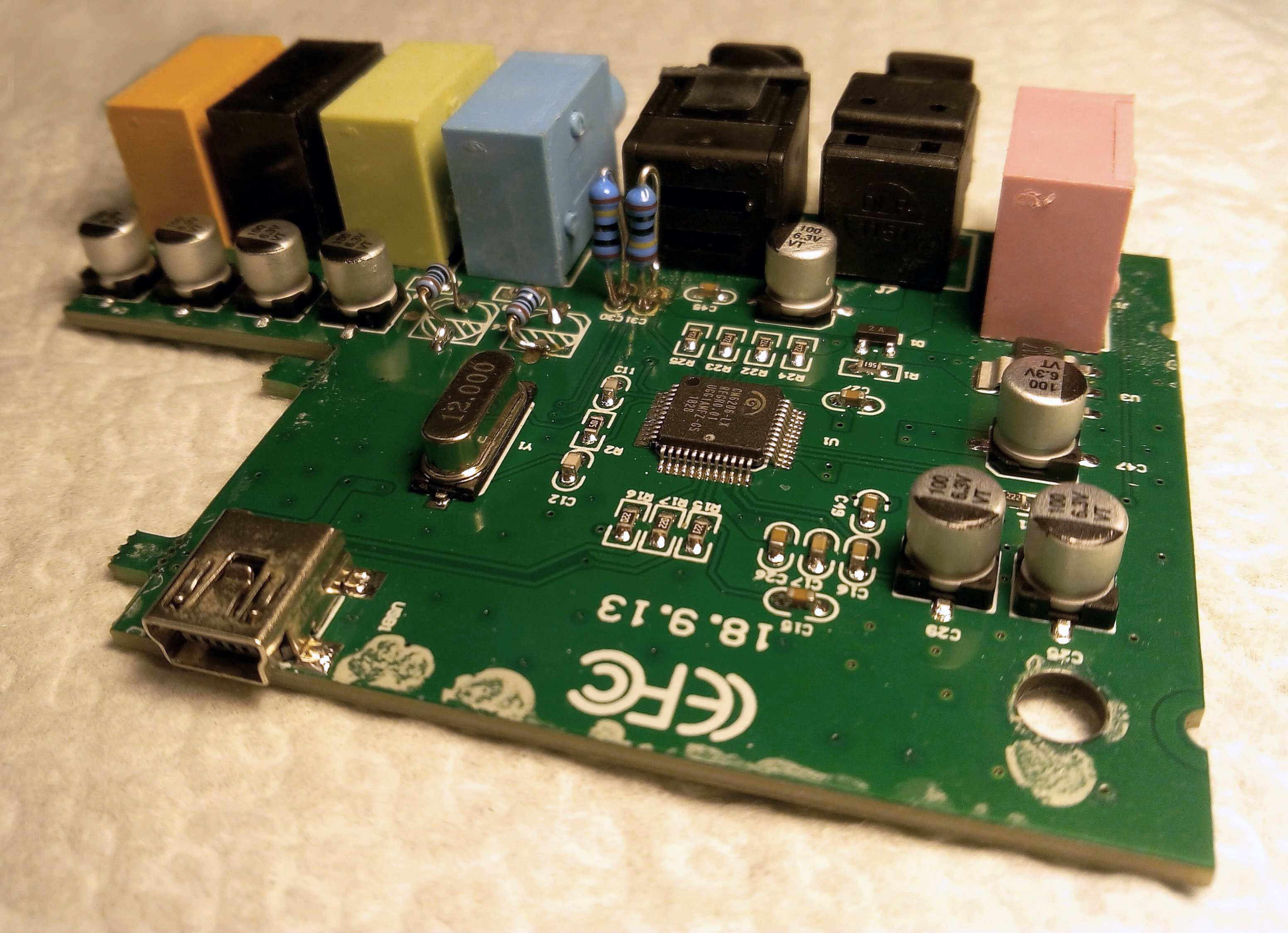

Image 2
Without this change will have inputs and outputs in the measurements will be continuous but still quite approximate. With the 4.x version of the DAA it can easily calibrate the zero and the scale factor and make very precise measurements (accuracy to within a few millivolts and +/- 0.1 DB).
Maybe in a few days we will publish a link to download a temporary version, still flawed, and without documentation, but already usable.
Thank you Livio!
Yes, I meant those measures for: VPP, RMS, dB at fixed frequency, freq, etc…
and using the slots actually the spectrum of possibilities would be even wider!
Thanks for all the information! The changes are simple, and I should already have one of the listed cards, I had bought to experiment with PMT adapter (but I think it will take at least another).
You may, for pleasure, make a measurement on your ticket and possibly the others you will reach you?
We'd need to know if all have the same bias voltage, because the DataSheet says it should be 2.25 volts, while all the cards we tested have the polarization 1.36 volts.
To measure it should:
– Make the changes indicated, or at least change the two output electrolytic with two resistors 100 ohm resistor.
– Do not send signals to the card, then hold off the DAA and any other possible audio source that goes to its release.
– Use a digital multimeter on a more continuous low. Probably 2 volts.
– Slide a jack in the FRONT-OUT connector and measure the voltage between ground and each of the two outputs.
The same bias voltage, which reads on these two outputs, there should also be on the two LINE-IN inputs. But these inputs have a high impedance, and resistors from 1 mega ohms that we add the rise again. So if the polarization that you read about FRONT-OUT 1.36 volts, when measuring the LINE-IN should be measured approximately 1.24 volts (if the tester has a normal impedance 10 mega ohm).
If necessary, write us an email to engineering@theremino.com so if we have something urgent to tell you you can write.
And thanks again for your help.
I made the requested changes.
With a multimeter with an internal resistance from 10 MOhm results are as follows:
Uscita FRONT-OUT: 1,32V (both channels).
Login IN-LINE: 1,20V (both channels).
Perfect, Thank you.
The value that you remember, because you will need it for all future calibrations, It is 1.32V. And’ advisable to write it on a label under the card.
I recommend everyone to build the test leads with double-shielded cable and two small crocodiles. As explained in the instructions. They are very comfortable, something quite different from the normal oscilloscope probes, bulky and rigid.
They are also very useful in the short and the Jack unshielded to use for the exits.
Read the documentation:
https://www.theremino.com/downloads/uncategorized#daa
Hi Livio,
You are doing wonderful job, your team is amazing. I have a question regarding spectrometer. Theremino Software captures image only. is it possible to to get actual value at each wavelength (y axis value). If we divide y axis 0-40 can i get precise values upto a decimal? Kind of extracting the data to excel?
I would like to use it for determination of concentration and for that i need to plot a graph with standards and unknown.
Thank you
Viv
The new version (2.7) of the Theremino Spectrometer has a new button “Save spectrum” that creates a file with the intensity values normalized by 0 to 100% (with decimals).
https://www.theremino.com/en/downloads/automation#spectrometer
About the Y axis values
————————————–
The X axis is the frequency with good accuracy. But the y-axis precision is so low that it can be used just to see the peak positions.
If you increase the intensity of the light the webcam saturate, for which relations of intensity between the various frequencies change significantly. If you decrease the light intensity measurements that you make in the valleys are almost noise only.
The dynamic between the lowest and the highest is little, so you always work with part of the graph in saturation and other parts dominated by noise.
Also some frequencies (infrared and ultraviolet) are measured with significantly lower sensitivity. And this changes considerably from a WebCam to another.
You cannot make an adjustment of the intensity because it would be valid only in the exact conditions under which it was made. As soon as you change the amount of light, the webcam, and its driver, the trimmings would no longer be valid.
Product intensity errors from all causes totaled exceed dozens of times, and even hundreds on the extremes of the band.
Problem in Windows 10, error 5 prompt in following a request to become administrator, reinstalled the OS officer diskette, the problem remains.
We take care of input-output for Windows, not Windows itself. We will however try to help you but you have not written anything understandable.
– Error 5 the prompt? which prompt?
– Because request to become administrator?
– You're launching one of our applications?
– What application are you throwing?
– If you become a non-administrator does not work?
Reinstall your operating system?
It is only at enormous problems not solvable with normal operations.
I think the case did not come to this and prior explain what you're trying to do and what it does not work.
I'm not using any your application, just I know that Livio knows Windows, maybe you have the right suggestion, I use the PC only I, the problem was born one day I turned on the PC with a USB chiavina inserted carrying a shopping miniSO he does certain things but never used, from that moment, the boot being asked my pass, not having entered pass years earlier during the installation, from that moment I have not + have access to the PC, only to re-install Win Solution, in doing so I assume that they have committed a fault, to pass the request I have given the same name as the owner of the PC, all right until the moment of wanting to do certain file operations, it requires administrator privileges, the command string to immetter in the DOS window (the so-called prompt) to have the privileges of ceo is trivial, send the command was returned to me “error5”, This seems to refer to a generic anomaly in the Windows registry, in conclusion, corrupt registry; riinstallo once the OS by giving it different this time strings PC owner and password, result, the error 5 returns,
I'm sorry, I've never done so strange operations. I've always used or Tablet PC running normally installed (not from a USB stick).
I suggest you search the internet.
Hello
Livio
Hello Livio, excuse the trouble but I would like to ask you some information about the ability to monitor electromagnetic pollution in the environment and in the open air. Currently there is a law that sets limits and you hear a lot about New 5g networks (both in positive and negative terms). I'd be interested, through Theremino, in order to understand the level of volts per meter present.
There is some application in order? It does not seem to have found hints.
Thanks again
Joseph
We have a meter of electromagnetic fields but only for network frequencies (50 Hz and harmonics)
https://www.theremino.com/hardware/inputs/meteorology-sensors#emf
For the 5G, who works at frequencies of 700 MHz, 3 GHz e 7 Ghz (about), We should study a special circuit. To measure strongest fields (ie the volt law that are to be measured close to the antenna), It would be enough to use a diode and a little more. The expected 61 volts per meter (that are to be measured close to the antenna!) They are so strong that it would take you a LED and two wires from a few centimeters. And be careful not to go too close to the antenna or the LED burns.
With suitable diodes and also adding an operational to linearize the response of the diode (all then attached to a Master of ADC), It could also measure weak fields.
Then the problem will remain to calibrate the system in volts per meter, and here I would recommend you buy on eBay a EMF Meter, it should not cost much. Check, however, it is able to get to 7 Ghz.
If you have time to transfer the measurements on a PC in real time, then you may also use the EMF meter only (that so you have to buy for strength, otherwise you may not calibrate your homebuilt).
Perhaps there are also EMF gauges connected in USB to PC…
Hello guys, greetings from Brasil
I´m a organic chemistry teacher with very little program skills. I´d like to use theremino system to build 3 syringes pumps. They are pumped by stepper motors. Unfortunatelly I could not find easy directions on how to control one stepper using theremino system I wold like to suggest an HOWTO file to newbies. I could light on and of an LED using Theremino arduhal…but nothing else. Hope you can help me.
Best regards
Alfredo
I write in Italian because it gets better.
You could translate with the right mouse button.
—————-
You can do many things without knowing programming. You'll just need a few lines of software.
But you have to start step by step and learn a piece at a time.
1) Get a Master Theremino, which controls easily stepper (Arduino would be considerably more difficult, you should schedule firmware pages and is not explained anywhere how to do it)
2) With the Master can control up to five stepper motors. Or (for example,), Stepper motors three and four In-Out generic.
3) Connect Stepper motors, the driver per i motori (It is explained on our website, such as use) and also a power supply (12 Volt will be fine).
4) Begin to try to move the motors, HAL configuring the pin as a stepper and moving those values with the application Theremino Slot Viewer.
———
Before you think about the software, learn to manually move the motors, What are Slot, how to connect the power supply properly grounded, without causing shutdowns of the Master or the PC each time you turn the 220… etc…
———-
Foretelling the following steps.
But you do not worry too much for now.
When you are familiar with the manual movement of the engines it will be easy to continue.
5) You could write a small program in a few lines Theremino Automation. I think this will be the most appropriate solution for you.
6) To control the movement could do a little something with the application Theremino Buttons. But the Buttons application is very simple, and its possibilities are very few.
7) If you know well you know Excel and plan its Macro, you could use Theremino Office and write entirely in Excel programs.
8) If you are fluent MaxMsp could use him to program.
9) In the future (if you had to do extremely complex programs) you may also use the same software lines you wrote in Automation and transfer, almost the same, in Theremino Script, or even VBNET. In the latter case from EmptyApp application and check the engines with just a few software line.
For all steps 5 to 9 (programming), You can help us. But now we do not think too much, begins to make connections, the mechanics, and move the engine manually with the SlotViewer.
————
Useful links for the first part:
https://www.theremino.com/technical/schematics#masterv5
https://www.store-ino.com
https://www.theremino.com/hardware/outputs/motors
https://www.theremino.com/downloads/foundations#hal
https://www.theremino.com/downloads/foundations#slotviewer
Links for programming:
https://www.theremino.com/downloads/automation
https://www.theremino.com/downloads/foundations#buttons
https://www.theremino.com/downloads/foundations#office
https://www.theremino.com/downloads/foundations#maxmsp
https://www.theremino.com/downloads/foundations#script
https://www.theremino.com/downloads/notes-on-software#development
https://www.theremino.com/downloads/notes-on-software#emptyapp
Good morning, I used to make small Theremino automation and has been very useful and effective, and I would like to share with you a possible solution, it may be useful, with respect to the ion chamber. A few days ago I started reading your room to measure radioactivity from radon and I saw that you have problems due to air humidity, I read that recommended to put it in a polythene bag… I would advise, if it does not create problems to the room, adding silica gel inside the bag so as to adsorb moisture and create a fairly standard environment or alternatively to fill a tube of silica gel, and then pass the air through this, before feeding it into the chamber. The silica gel does not cost much and can be regenerated once a frazzled, and changes color when adsorbed water vapor.
Be’ and that's all… I hope I can serve…
Giacomo
Could you provide the link to the free theremino spectrometer software. I would like to try it with my diy spectrometer I made with Public Lab. I do not see any link to it at Theremino wedsite.
The spectrometer is here:
https://www.theremino.com/en/downloads/automation#spectrometer
The software to be downloaded is always at the end of each project, in the area highlighted in green.
Our software is downloaded in a ZIP, then you will need to decompose from the ZIP into a folder of your choice, and launch the EXE file. You do not need to install the software and therefore it is “portable” on other computers. Moreover it do not change anything on your computer, outside the folder where you put it.
—————-
The next time you could easy find all our projects with the “search” box that is present in every page of the theremino site.
You could also use this page as an index of all the projects:
https://www.theremino.com/en/applications
The references to write via email are here:
https://www.theremino.com/en/contacts/about-us
Good morning I need to make an urgent request: there is an application such as music keys but also functions with keyboard numbers?
Maybe you should write two lines with automation.
But to be able to advise you what to write, you should let us know what they should do the number keys.
Hello Livio,
I am very interested in the dust and his measurements for a personal health issue. I purchased the Sharp sensor and I realized the sensor adapter V2. I wanted to ask if the sw can control the impulses as shown in the dust spectrometry page is ever developed.
Thank you
No sorry.
You may write to Mark and see if he will suggest something (perhaps with Excel)
https://www.theremino.com/contacts/about-us#marco
Thanks Livio.
I will try to contact Marco like you suggested.
Good work and endless compliments for everything proposed by you.
